ผ้าไม่ทอ Sanin Filtertechnik เหมาะสำหรับกระบวนการผลิตที่แตกต่างกัน เช่น การเจาะ การกลึง การกัด การขัด การขัด การเจียร หรือการวางลวด เราเพิ่มประสิทธิภาพตัวกรองแถบสุญญากาศ ตัวกรองแถบขนาดกะทัดรัด ตัวกรองแถบไฮโดรสแตติก ตัวกรองแถบเพลท ตัวกรองแถบเอียง หรือตัวกรองแถบแรงโน้มถ่วง นอกจากการกรองน้ำมันหล่อลื่นในการทำความเย็นในโรงงานต่างๆ แล้ว ยังสามารถกรองน้ำมันในโรงงานรีดและในระหว่างกระบวนการอัดขึ้นรูปได้อีกด้วย

Filter Cartridges

for fine filtration

SANIN

String Wound Filter Cartridges

The classic and millionfold proven string wound filter cartridge consists by default of a polypropylene yarn which is wound onto a supporting core of the same material. Further yarns like cotton, polyester and glass fiber with stainless steel core allow applications under different operating conditions. This enables the use at higher temperatures as well as a broad spectrum of chemical resistance.

SANIN

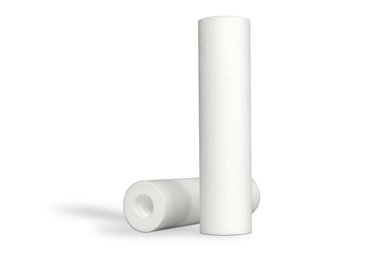

Nominal Filter Cartridges Meltblown

During the meltblown process, granulates are fused inside an extruder. The extruded material in the form of microfibers is further processed via injectors and hot air into the final filter cartridge. Because of the special manufacturing process under high quality standards, these filter elements are not in need of a supporting core. Still, relatively high differential pressures are feasible. The continuously graded pore structure allows a long lifetime of the filter element.

SANIN

Absolute Filter Cartridges Meltblown

Our absolute filter cartridges are the solution to steadily increasing requirements on the purities of numerous fluids. These meltblown-processed filter elements achieve an absolute deposition rate with a β – value of 5000. The standard supporting core made of polypropylene supports the high structural strength. A high absorption capacity of solid particles together with the absolute deposition efficiency allow a profitable use of these cartridge filters in many applications.

SANIN

Pleated Filter Cartridges

Filter cartridges with pleated filter material have an increased surface area compared to conventional filter elements. Thus, longer lifetime and a cost-efficient filtration is achieved. With a supporting core as well as a strong external cage, a sufficient strength is reached. The multi-layered elements are thermally welded and free of binding agents, adhesives or additives. They are available with nominal as well as with absolute deposition rates.

SANIN

Activated Carbon Filter Cartridges

Activated carbon filter cartridges with carbon blocks are continuously produced by extruding activated carbon granules in conjunction with additives in food grade quality. The result is an excellent adsorption capacity of the activated carbon block without fine coal being dissolved in the liquid. Chlorine, odors and organic residues are effectively retained.

SANIN

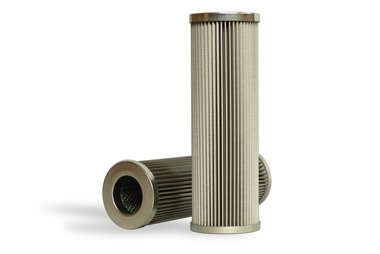

Stainless Steel Filter Cartridges

Filter cartridges made of stainless steel can withstand high temperatures and corrosive media. Consisting of smooth or pleated wire mesh resting on an underlying perforated plate, stainless steel filter cartridges can be cleaned and reused after various procedures.

SANIN

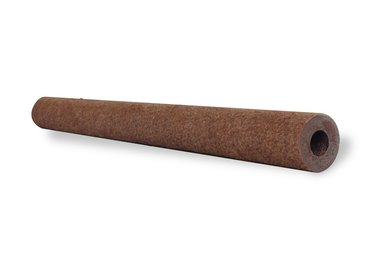

Other Filter Cartridges

The right choice could be among the many other variants of filter cartridges. These include phenolic resin reinforced acrylic fiber elements, coreless filter cartridges with larger diameters and activated carbon cartridges both with granules and as a combination meltblown filter medium / extruded activated carbon block. Please contact us personally with your needs or requirements and we will find a solution for you.
